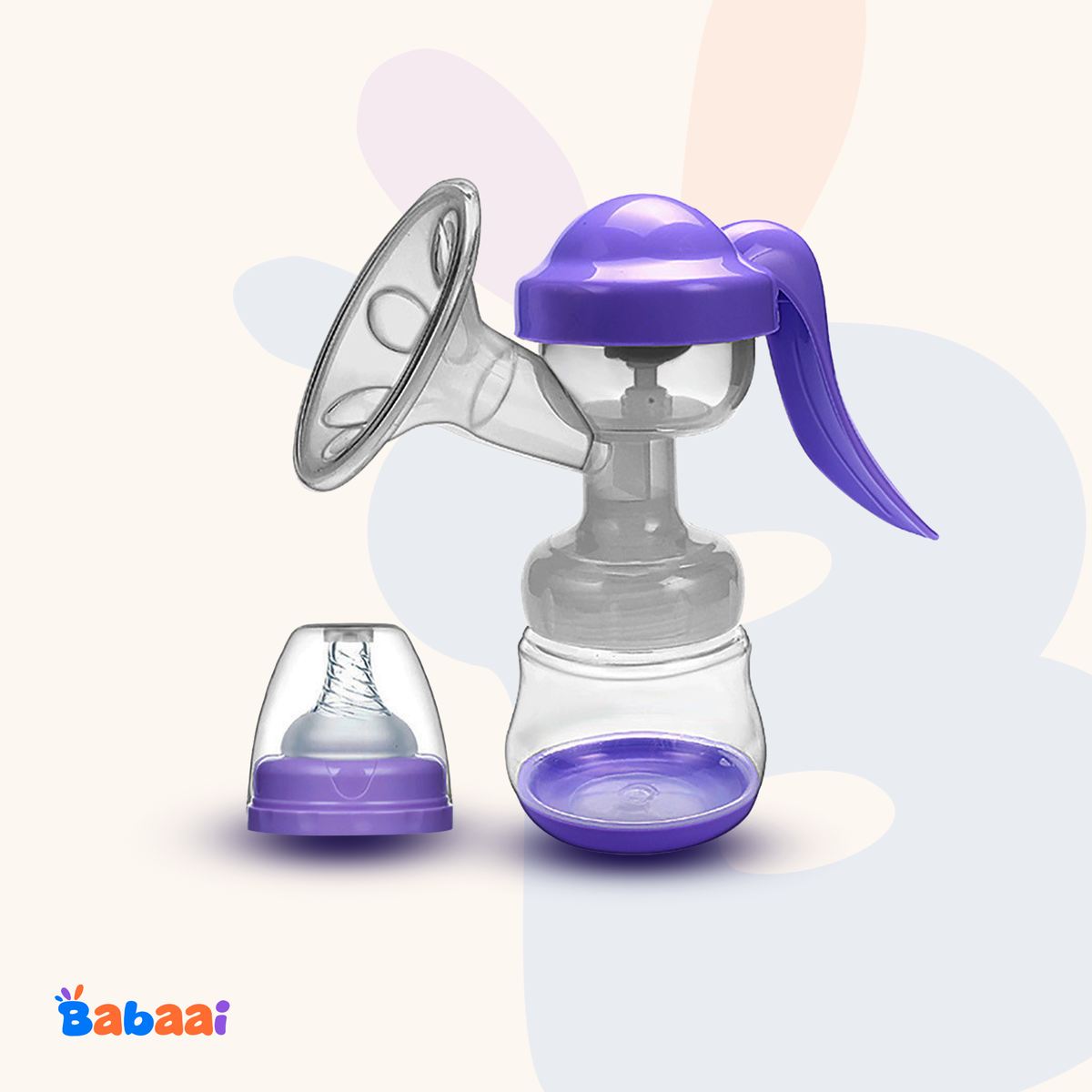

Mothercare Lock System Breast Pump (Manual)

Specifications & Key Features

• Pump Type: Manual (hand-operated, non-electric).

• Design & Mechanism:

  • Ergonomic Handle: Soft-pull handle designed to minimize hand fatigue during manual pumping.

  • Cushioned Breast Shield: Soft silicone cushion/flange with textured massage dots to encourage milk expression and fit comfortably over the breast.

  • Locking Mechanism: Top diaphragm / locking cap system that securely seals the vacuum chamber to maintain steady suction.

• Collection Bottle: Wide-neck design with clear volume markings (up to $150\text{ ml}$ / $5\text{ oz}$).

• Included Accessories: Includes a feeding teat with a collar, base/stand ring, and protective hygienic travel cap.

• Materials: Made from BPA-free, food-grade silicone and polypropylene (PP) plastic.

How to Use

1. Preparation & Hygiene

1. Sanitize: Before first use and after every session, wash all components in warm, soapy water and sterilize them (via boiling water for 5 minutes or a steam sterilizer).

2. Wash Hands: Thoroughly wash your hands with soap and water before handling cleaned pump parts.

3. Assemble:

   • Push the silicone valve into the bottom of the pump body.

   • Attach the upper silicone diaphragm and secure the top lock/cap onto the body.

   • Fit the handle into its hinge/pivot slot.

   • Push the silicone cushion firmly into the funnel/breast shield.

   • Screw the wide-neck bottle onto the base of the pump body.

2. Pumping Process

1. Positioning: Sit in a comfortable, relaxed position. Center the breast shield over your nipple so it creates an airtight seal against your skin.

2. Stimulation Phase (Let-Down): Begin squeezing the handle using short, rapid strokes. This mimics a baby's quick sucking pattern to trigger milk flow.

3. Expression Phase: Once milk starts flowing, switch to longer, slower squeezes. Hold the handle down for 1–2 seconds before releasing to maximize output comfortably.

4. Finish: Express for about 10–15 minutes per breast (or until flow stops).

3. Storage & Feeding

• Unscrew the pump body from the bottle.

• Attach the included teat collar and cap to feed immediately, or seal with a lid to store the milk safely in the refrigerator or freezer.
